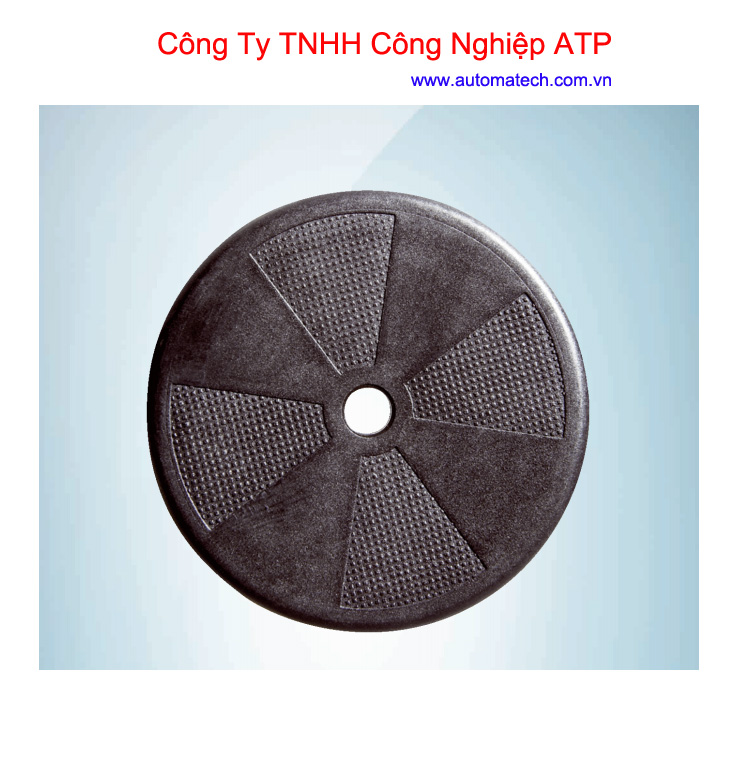

6033781 RFT321-5313 RFID RFID transponders

Detailed technical data Features Type Hardtag Frequency band HF (13.56 MHz) Carrier frequency 13.56 MHz RFID standard ISO/IEC 15693, ISO/IEC 18000-3 “Mode 1” Read range RFH505 3 cm 1) RFH510 5 cm 1) RFH515 7 cm 1) RFH620 12 cm 1) RFH630 20 cm 1) IC type NXP ICODE SLIX IC capacity 896 Bit (28 x 4 Byte) IC write cycle ≤ 100,000 IC data retention time

ATEX marking ✔ Ambient data Vibration resistance IEC 68-2-6 Shock resistance IEC 68-2-29 Ambient operating temperature –25 °C ... +85 °C 1) Application temperature + 140 °C, 100 h, 1   2) Storage temperature –40 °C ... +90 °C 1) Max. temperature at which the RFID transponder can interact with the RFID read/write device. 2) Max. temperature the RFID transponder can withstand [maximum temperature; duration; cycles]. For optimal performance, the transponders should completely cool off before a new temperature cycle is started. Classifications ECl@ss 5.0 27280402 ECl@ss 5.1.4 27280402 ECl@ss 6.0 27280402 ECl@ss 6.2 27280402 ECl@ss 7.0 27280402 ECl@ss 8.0 27280402 ECl@ss 8.1 27280402 ECl@ss 9.0 27280402 ECl@ss 10.0 27280402 ECl@ss 11.0 27280402 ETIM 6.0 EC002998 ETIM 7.0 EC002998 ETIM 8.0 EC002998 UNSPSC 16.0901 52161523
