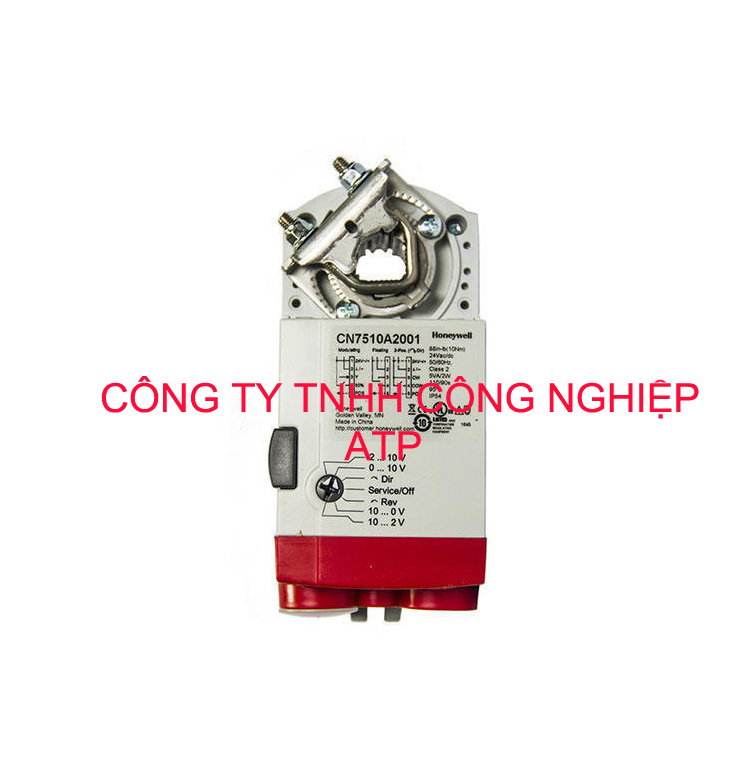

CN6105A1011 24V, CN7505A2001 24V, CN4605A1001 230V, CN7505A2001C 4-20mA Honeywell

buiding
ACTUATORS FOR FLOATING AND TWO-POSITION
CONTROL WITH INTERNAL FEEDBACK SWITCHES




SPECIFICATIONS
Supply voltage
CN6105A/CN6110A
24 Vac/dc -15%/+20%, 50/60 Hz
Nominal voltage
CN6105A/CN6110A
24 Vac/dc, 50/60 Hz
All values stated hereinafter apply to operation under
nominal voltage conditions.
Power consumption
CN6105A/CN6110A
5 VA / 2 W
Ambient limits
Ambient operating limits -5...+140 °F (20...+60 °C)
Ambient storage limits
-22...+176 °F (-30...+80 °C)
Relative humidity
5...95%, non-condensing
Safety
Protection standard
IP54
Protection class
II as per EN 60730-1
Overvoltage category
II
Lifetime
Full strokes
60000
Repositions
1.5 million
Mounting
Round damper shaft
3/8 in…5/8 in.
Square damper shaft
1/4 in…1/2 in.; 45° steps
Shaft length
min. 1-5/8 in.
Internal Feedback Switches
Rating
Class II
Triggering points
5° / 85°
Torque rating
CN6105A
44 lb-in. (5Nm)
CN6110A
88 lb-in. (10 Nm)
Runtime for 90°
CN6105A/CN6110A
90 sec (dc / 60 Hz ac)
110sec (50 Hz ac)
Rotation stroke
95° (Max.)
Dimensions
see “Dimensions” on page 6
Weight (without cables) 1 lbs.
Noise rating
35 dB(A) max. at 1 m
