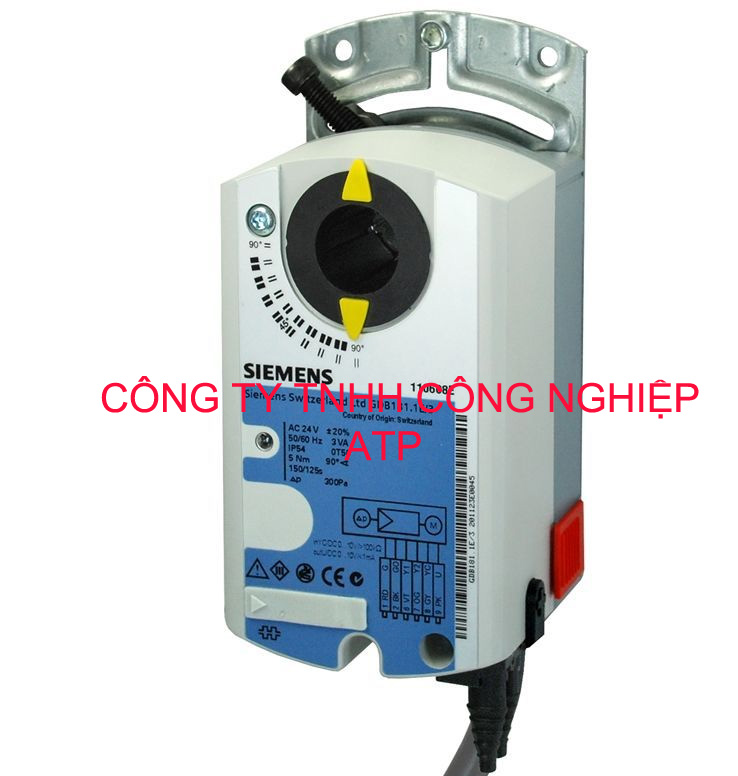

GDB131.1ERotary air damper actuator, AC 24 V, 3-position, 5 Nm, 150 s
  • For shaft dia. 8..16 mm, square 6...12 mm, min. shaft length 30 mm
  • With position indication and adjustable mechanical limit stop
  • Button for disengaging the gear train to enable manual override
  • With base made of steel, plastic housing and 0.9 m connecting cable
    • Torque
    5 Nm
    Air damper area
    0.8 m²
    Angular rotation
    90°
    Power consumption
    2 VA, 1 W
    Positioning time
    150 s
    Cable length
    0.9 m
    Positioning signal
    3-position
    Degree of protection
    IP54
    Ambient temperature, operation
    -32…55 °C
    Dimensions (W x H x D)
    68 x 137 x 59.5 mm
    Operating voltage
    AC 24 V
    Auxiliary switch
    0
