ML7420A8088-E   ML7425A8018-E Honeywell

buiding

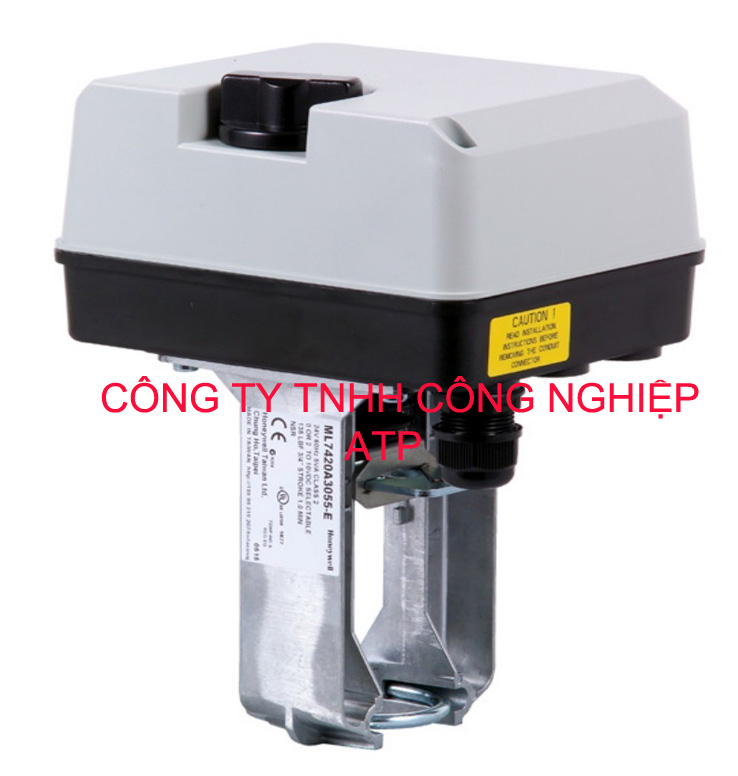

Electric Linear Valve Actuator



FEATURES • Easy and quick installation • No separate linkage and adjustments required • Low power consumption and maintenance-free • Self-adaption function • Force-limiting end stops • Manual operation knob • 0(2)~10 Vdc input and 2~10 Vdc position feedback signal • Direct/ Reverse action adjustable • Stroke position on signal failure selectable • Corrosion-resistant design

SPECIFICATIONS Temperature Limits Ambient operating limits -10~+50 ℃ at 5~95% r.h. Ambient storage limits -40...+70 °C at 5...95% r.h. Medium temperature Max. 150 °C (220 °C with High-Temperature kit) Signals Signal input voltage y=0~10 Vdc or 2~10 Vdc Ri=100 KΩ Signal source 1 KΩ max. Position feedback signal x=2~10Vdc(fully extended) Load 1 mA max. Safety Protection class III as per EN60730-1 Protection standard IP54 as per EN60529 Flame retardant housing V0 as per UL94 (with metal cable gland) Material Cover ABS-FR Base glass fiber reinforced plastic Yoke aluminum diecast
